Lateral MOSFETs

ECF10N20, ECF10P20, ECF20N20 & ECF20P20

the ideal choice for audio amplifier design

EXICON Mosfets have been designed specifically for high power linear use.

They offer high voltage capability, high slew rate and low distortion, making them the ideal choice for audio amplifier design.

Freedom from secondary breakdown and thermal runaway make them extremely reliable and remove the need for protection circuitry.

These advantages together with wide bandwidth, low drive requirements, and ease of paralleling make it possible for the simple construction of robust amplifiers with excellent sonic characteristics.

  • Specifically designed for audio amplifier applications
  • High thermal conductivity
  • Excellent frequency characteristics
  • Integral protection diode
  • Free from current concentration, resulting in a high resistance to electrical destruction
  • Temperature characteristics which inherently protect against short circuit fault conditions and thermal runaway

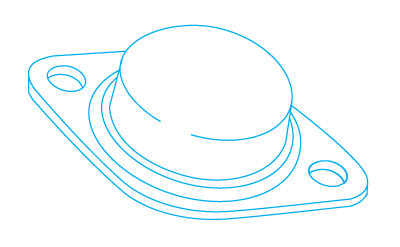

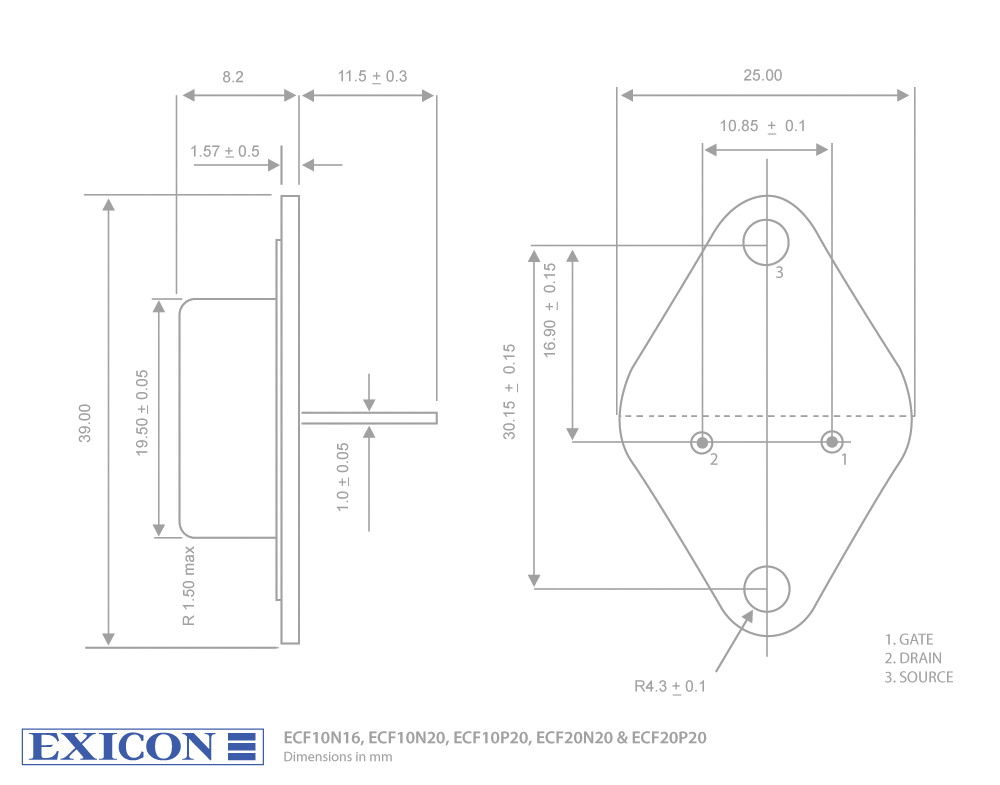

ECF10N16, ECF10N20, ECF10P20, ECF20N20 and ECF20P20 MOSFETS

Rollover image to zoom in, or click here for full-sized version

ECW20N20 & ECW20P20

for audio power amplifier output stage applications

The ECW20P20-Z mosfet is specifically designed for audio power amplifier output stage applications.

They offer superb sonic characteristics and with the features listed below its not hard to see how they can help you to reduce size, cut costs and add real quality and functionality to your design.

These mosfets also have a negative temperature coefficient and completely thermally stable bias point without the need for emitter resistors, as used in bipolar amplifiers.

  • Simplified drive circuitry requirements
  • Inherent output anti-parallel diodes
  • Excellent thermal characteristics
  • Single live heatsink capability (source connected case)
  • Very high bandwidth and slew rate
  • No high frequency cross conduction
  • Easy paralleling (devices available in selected categories to enhance paralleling performance)
  • Soft clipping performance
  • A wide safe operating area (SOA) and absence of secondary breakdown
  • Reliable and robust performance when compared to bipolar solutions
  • Simplified protection saving cost & reducing complexity
  • Improvement of amplifier performance with awkward loads
  • Oscillation-free operation

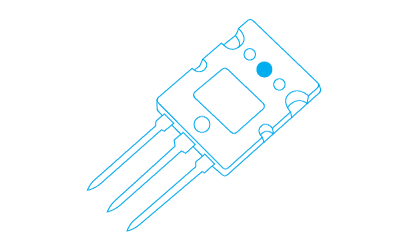

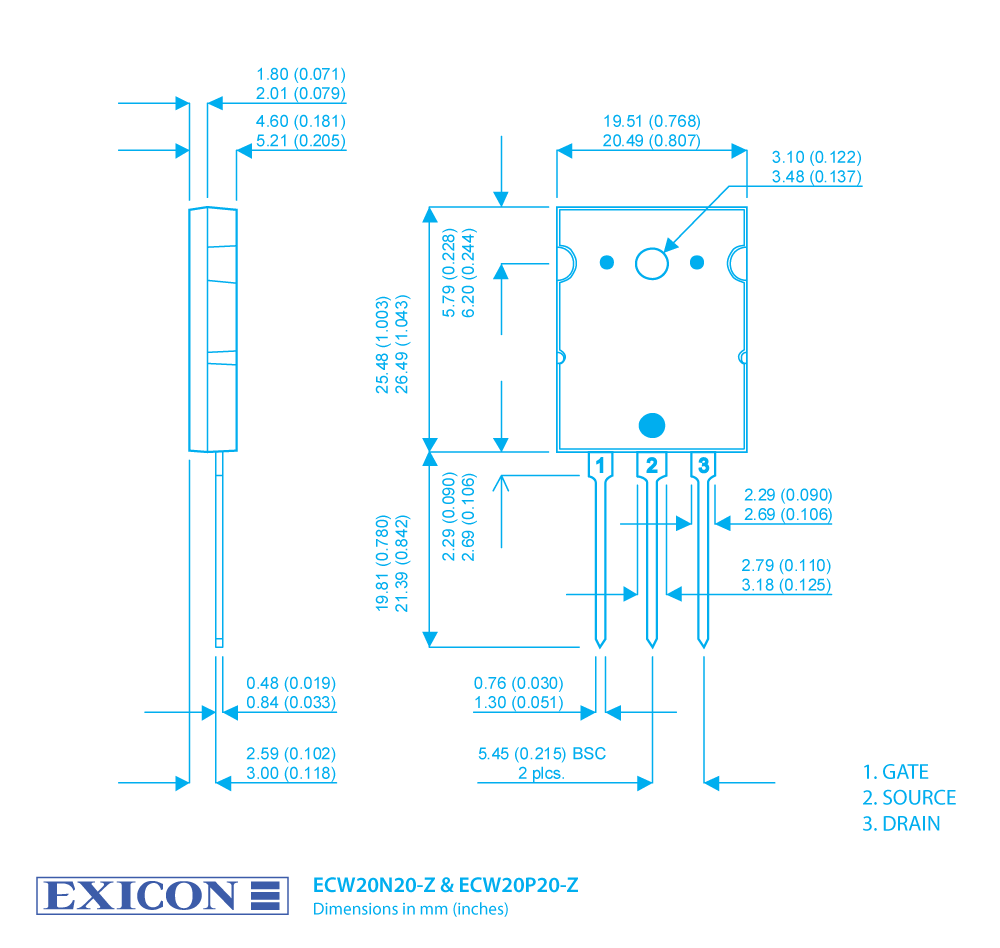

ECW20N20-Z and ECW20P20-Z MOSFETS

Rollover image to zoom in, or click here for full-sized version

ECX10N20 & ECX10P20

for high power linear use

EXICON Mosfets have been designed specifically for high power linear use. They offer high voltage capability, high slew rate and low distortion, making them the ideal choice for audio amplifier design.

Freedom from secondary breakdown and thermal runaway make them extremely reliable and remove the need for protection circuitry.

These advantages together with wide bandwidth, low drive requirements, and ease of paralleling make it possible for the simple construction of robust amplifiers with excellent sonic characteristics.

  • Tighter tolerence on Vsat (10V max)
  • Specifically designed for audio amplifier applications
  • High thermal conductivity
  • Excellent frequency characteristics
  • Integral protection diode
  • Free from current concentration, resulting in a high resistance to electrical destruction
  • Temperature characteristics which inherently protect against short circuit fault conditions and thermal runaway

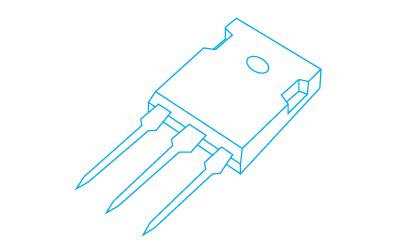

ECW20N20-Z and ECW20P20-Z MOSFETS

Rollover image to zoom in, or click here for full-sized version

Need further details on any of our components? Simply click on the PDF icon to view/download the relevant datasheet.

Cross-reference charts can also be found here.

Part no.VdsIdPowerPkgComments DatasheetPurchase
ECF10N20200V8A125WTO3Metal Buy
ECF10P20-200V-8A125WTO3Metal Buy
ECF20N20200V16A250WTO3Double die metal Buy
ECF20P20-200V-16A250WTO3Double die metal Buy
ECW20N20200V16A250WTO264Double die plastic Buy
ECW20P20-200V-16A250WTO264Double die plastic Buy
ECW20N20-Z200V16A250WTO264Double die plastic Buy
ECW20P20-Z-200V-16A250WTO264Double die plastic Buy
ECX10N20200V8A125WTO247Plastic Buy
ECX10P20-200V-8A125WTO247Plastic Buy
